This model contains 253 species (7,186 contrasts). The phylogenetic correlation matrix was constructed and aligned to those species as follows; brms uses it in (1 | gr(sp_ncbi, cov = A)).
A_full <- prepR4pcm::pr_phylo_cor(tree_final)
# Fallback if needed: ape::vcv.phylo(tree_final, corr = TRUE)
dat_model <- dat_es
phylo <- prepare_phylo_and_data(dat_model, A_full, fill_unmatched = TRUE)
dat_model <- phylo$dat_model
A <- phylo$A_mod
formula <- brms::bf(
yi_lnM_safe ~ 1 + (1 | ref_id) +
(1 | gr(sp_ncbi, cov = A)) + (1 | gr(es_id_model, cov = V)),
sigma ~ 1
)
V <- phylo$V
fit <- brms::brm(formula, data = dat_model,
data2 = list(A = A, V = V))The intercept-only model estimates the overall mean lnM and the baseline residual heterogeneity (sigma), with no moderators — the reference against which every moderator model is compared.
summary() is read from Rdata/epred_draws/m00.rds; the full brms fit is not loaded at render.
print_cache_summary(cache) Family: gaussian
Links: mu = identity; sigma = log
Formula: yi_lnM_safe ~ 1 + (1 | ref_id) + (1 | gr(sp_ncbi, cov = A)) + (1 | gr(es_id_model, cov = V))
sigma ~ 1
Data: structure(list(es_id = c("es0313", "es0314", "es03 (Number of observations: 7186)
Draws: 4 chains, each with iter = 4000; warmup = 2000; thin = 1;
total post-warmup draws = 8000
Multilevel Hyperparameters:
~es_id_model (Number of levels: 7186)
Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
sd(Intercept) 1.00 0.00 1.00 1.00 NA NA NA
~ref_id (Number of levels: 254)
Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
sd(Intercept) 0.74 0.04 0.66 0.83 1.00 1737 3017
~sp_ncbi (Number of levels: 253)
Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
sd(Intercept) 0.75 0.17 0.43 1.11 1.00 810 1287
Regression Coefficients:
Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
Intercept -0.55 0.43 -1.41 0.30 1.00 2489 3073
sigma_Intercept -0.59 0.01 -0.61 -0.56 1.00 3469 4817
Draws were sampled using sample(hmc). For each parameter, Bulk_ESS
and Tail_ESS are effective sample size measures, and Rhat is the potential
scale reduction factor on split chains (at convergence, Rhat = 1).The model summary reports the scale-model intercept on the log-\(\sigma\) scale, because the brms model uses Links: mu = identity; sigma = log. The summary therefore gives
\[ \beta_{\mathrm{Overall}}^{(s)} = -0.59, \]
which is really \(\log(\sigma) = -0.59\), not \(\sigma\) itself.
The orchard plot below explicitly back-transforms that coefficient with exp() before plotting it:
\[ \sigma = \exp(-0.59) \approx 0.55. \]
The plotting code confirms this directly (sig_est <- exp(fe["sigma_Intercept", "Estimate"])), and the scale panel’s x-axis is labelled “residual lnM (SD)”, not log-sigma.
So the positive value shown in the orchard plot’s scale panel is not a residual \(\ln M\) effect size, and it is not showing logged residuals. It is the residual standard deviation of \(\ln M\) — \(\sigma\) — on its natural scale. Because a standard deviation cannot be negative, it appears positive even though the corresponding row in the summary table above is negative. This applies to every scale-submodel coefficient in this book, not only the intercept.
The overall posterior mean is shown on the \(\ln M\) scale and as \(d_{\mathrm{eq}} \approx \sqrt{2\exp(2\ln M)}\). The transformation is applied to the posterior 95% credible-interval endpoints.
source(here::here("Scripts", "18_contrasts_cache.R"))
kable_contrasts(
format_posterior_d_eq(cache$post$b_Intercept, "Overall mean"),
caption = "Overall mean lnM and equivalent d with 95% credible intervals."
)| Estimate | Mean lnM | lnM lower 95% CrI | lnM upper 95% CrI | deq | deq lower 95% CrI | deq upper 95% CrI |
|---|---|---|---|---|---|---|
| Overall mean | -0.553 | -1.415 | 0.305 | 0.814 | 0.344 | 1.918 |
Location–scale \(I^2\) from this intercept-only baseline, partitioned into between-study (reference), phylogenetic, and within-study (residual) components following the location–scale meta-analysis framework of Nakagawa et al. Values are read from Rdata/summaries/heterogeneity_m00.rds.
kable_contrasts(format_heterogeneity(read_heterogeneity()),
caption = "Location–scale heterogeneity (I², %) with 95% credible intervals.")| Component | I² (%) | Lower 95% CrI | Upper 95% CrI |
|---|---|---|---|
| Total | 96.6 | 95.5 | 97.7 |
| Between-study (reference) | 37.3 | 23.8 | 52.4 |
| Phylogeny | 38.1 | 16.2 | 58.9 |
| Within-study (residual) | 21.0 | 14.6 | 28.4 |
For each posterior draw, the heterogeneity denominator is:
\[ D = \sigma_u^2 + \sigma_{\mathrm{phylo}}^2 + \bar{\sigma}_e^2 + \bar{V}, \]
where \(\sigma_u^2\) is the between-reference variance, \(\sigma_{\mathrm{phylo}}^2\) is the phylogenetic variance, \(\bar{\sigma}_e^2 = \exp(2 b_{\sigma,0})\) is the residual heterogeneity variance from the scale submodel, and \(\bar{V}\) is the typical known sampling variance. Component-specific \(I^2\) values are:
\[ I_x^2 = 100 \times \frac{\sigma_x^2}{D}, \]
with total heterogeneity:
\[ I_{\mathrm{total}}^2 = 100 \times \frac{\sigma_u^2 + \sigma_{\mathrm{phylo}}^2 + \bar{\sigma}_e^2}{D}. \]
The typical sampling variance is computed from the diagonal sampling-variance matrix \(V\) as:
\[ \bar{V} = \frac{n - p}{\operatorname{tr}(P)}, \qquad P = W - W X (X^\top W X)^{-1} X^\top W, \qquad W = V^{-1}. \]
source(here::here("Scripts", "18_contrasts_cache.R"))
kable_contrasts(format_heterogeneity_components(read_heterogeneity()),
caption = "Precomputed variance components used in the m00 heterogeneity denominator.")| Quantity | Value |
|---|---|
| Vbar (typical sampling variance) | 0.050 |
| sigma2_u (between-study, ref_id) | 0.547 |
| sigma2_phylo (phylogeny, sp_ncbi) | 0.559 |
| sigma2bar_e (within-study residual) | 0.309 |

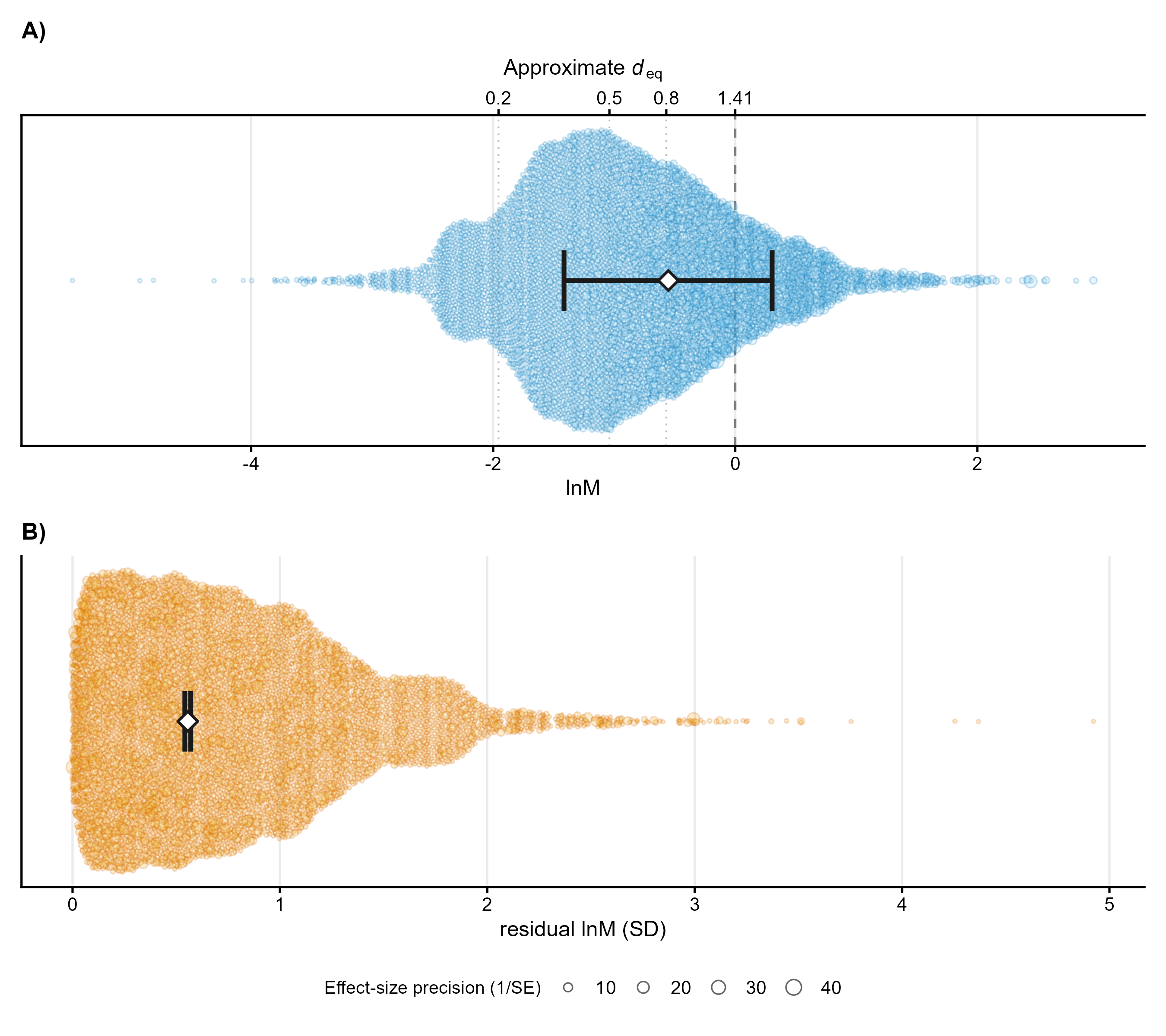

The orchard-style figure is read from Rdata/figures/publication/orchard/. The complete editable code used to build this plot is shown below.
knitr::include_graphics(
here::here("Rdata", "figures", "publication", "orchard", "m00_orchard_combined.png")
)
library(here)
library(tidyverse)
library(brms)
library(ggbeeswarm)
library(patchwork)
out_dir <- here::here("Rdata", "figures", "publication", "orchard")
out_dir_pdf <- here::here("Figures", "publication", "orchard")
dir.create(out_dir, recursive = TRUE, showWarnings = FALSE)
dir.create(out_dir_pdf, recursive = TRUE, showWarnings = FALSE)
dat_es <- readRDS(here::here("Rdata", "effect_sizes", "proceed_lnm_safe.rds"))
fit <- readRDS(here::here("Rdata", "models", "m00_ls_intercept_only.rds"))
theme_orchard <- function() {
ggplot2::theme_classic(base_size = 13) +
ggplot2::theme(
axis.text.y = ggplot2::element_text(size = 11),
axis.title.x = ggplot2::element_text(size = 12),
axis.ticks.y = ggplot2::element_blank(),
panel.grid.major.x = ggplot2::element_line(colour = "grey92"),
legend.position = "bottom",
legend.title = ggplot2::element_text(size = 10),
plot.title = ggplot2::element_text(size = 13, face = "bold"),
plot.caption = ggplot2::element_text(size = 9, colour = "grey50")
)
}
save_plot <- function(p, stem, width = 9, height = 6) {
ggplot2::ggsave(file.path(out_dir_pdf, paste0(stem, ".pdf")), p,
width = width, height = height, device = cairo_pdf)
ggplot2::ggsave(file.path(out_dir, paste0(stem, ".png")), p,
width = width, height = height, dpi = 300, type = "cairo")
}
raw <- dat_es |>
dplyr::mutate(precision = 1 / sqrt(vi_lnM_safe))
fe <- brms::fixef(fit)
int_est <- fe["Intercept", "Estimate"]
int_lo <- fe["Intercept", "Q2.5"]
int_hi <- fe["Intercept", "Q97.5"]
sig_est <- exp(fe["sigma_Intercept", "Estimate"])
sig_lo <- exp(fe["sigma_Intercept", "Q2.5"])
sig_hi <- exp(fe["sigma_Intercept", "Q97.5"])
vc <- brms::VarCorr(fit)
caption_txt <- sprintf(
"n = %d effect sizes | study SD = %.2f | phylogeny SD = %.2f",
nrow(raw), vc$ref_id$sd["Intercept", "Estimate"],
vc$sp_ncbi$sd["Intercept", "Estimate"]
)
p_loc <- ggplot2::ggplot() +
ggplot2::geom_vline(xintercept = 0, linetype = "dashed", colour = "grey50") +
ggbeeswarm::geom_quasirandom(
data = raw,
ggplot2::aes(x = yi_lnM_safe, y = 1, size = precision),
alpha = 0.20, shape = 21, fill = "#88CCEE", colour = "#0072B2",
groupOnX = FALSE
) +
ggplot2::geom_linerange(
ggplot2::aes(y = 1, xmin = int_lo, xmax = int_hi),
linewidth = 1.5, colour = "grey15"
) +
ggplot2::geom_point(
ggplot2::aes(x = int_est, y = 1),
size = 5, shape = 21, fill = "white", colour = "grey10", stroke = 1.2
) +
ggplot2::scale_size_continuous(name = "Precision (1/SE)", range = c(0.3, 4)) +
ggplot2::scale_y_continuous(breaks = NULL) +
ggplot2::labs(
x = "Location effect (lnM)",
y = NULL,
title = "Location -- Overall baseline",
caption = caption_txt
) +
theme_orchard()
raw_sig <- raw |>
dplyr::mutate(abs_resid = abs(yi_lnM_safe - int_est))
p_scl <- ggplot2::ggplot() +
ggplot2::geom_vline(xintercept = 0, linetype = "dashed", colour = "grey50") +
ggbeeswarm::geom_quasirandom(
data = raw_sig,
ggplot2::aes(x = abs_resid, y = 1, size = precision),
alpha = 0.20, shape = 21, fill = "#88CCEE", colour = "#0072B2",
groupOnX = FALSE
) +
ggplot2::geom_linerange(
ggplot2::aes(y = 1, xmin = sig_lo, xmax = sig_hi),
linewidth = 3, colour = "white"
) +
ggplot2::geom_linerange(
ggplot2::aes(y = 1, xmin = sig_lo, xmax = sig_hi),
linewidth = 1.5, colour = "grey15"
) +
ggplot2::geom_point(
ggplot2::aes(x = sig_est, y = 1),
size = 5, shape = 21, fill = "white", colour = "grey10", stroke = 1.2
) +
ggplot2::scale_size_continuous(name = "Precision (1/SE)", range = c(0.3, 4)) +
ggplot2::scale_y_continuous(breaks = NULL) +
ggplot2::labs(
x = "residual lnM (SD)",
y = NULL,
title = "Scale -- Overall baseline",
caption = sprintf(
"residual SD = %.3f [%.3f, %.3f]",
sig_est, sig_lo, sig_hi
)
) +
theme_orchard()
p_comb <- patchwork::wrap_plots(p_loc, p_scl, ncol = 1)
save_plot(p_loc, "m00_orchard_location", width = 9, height = 4)
save_plot(p_scl, "m00_orchard_scale", width = 9, height = 4)
save_plot(p_comb, "m00_orchard_combined", width = 9, height = 8)
p_comb
